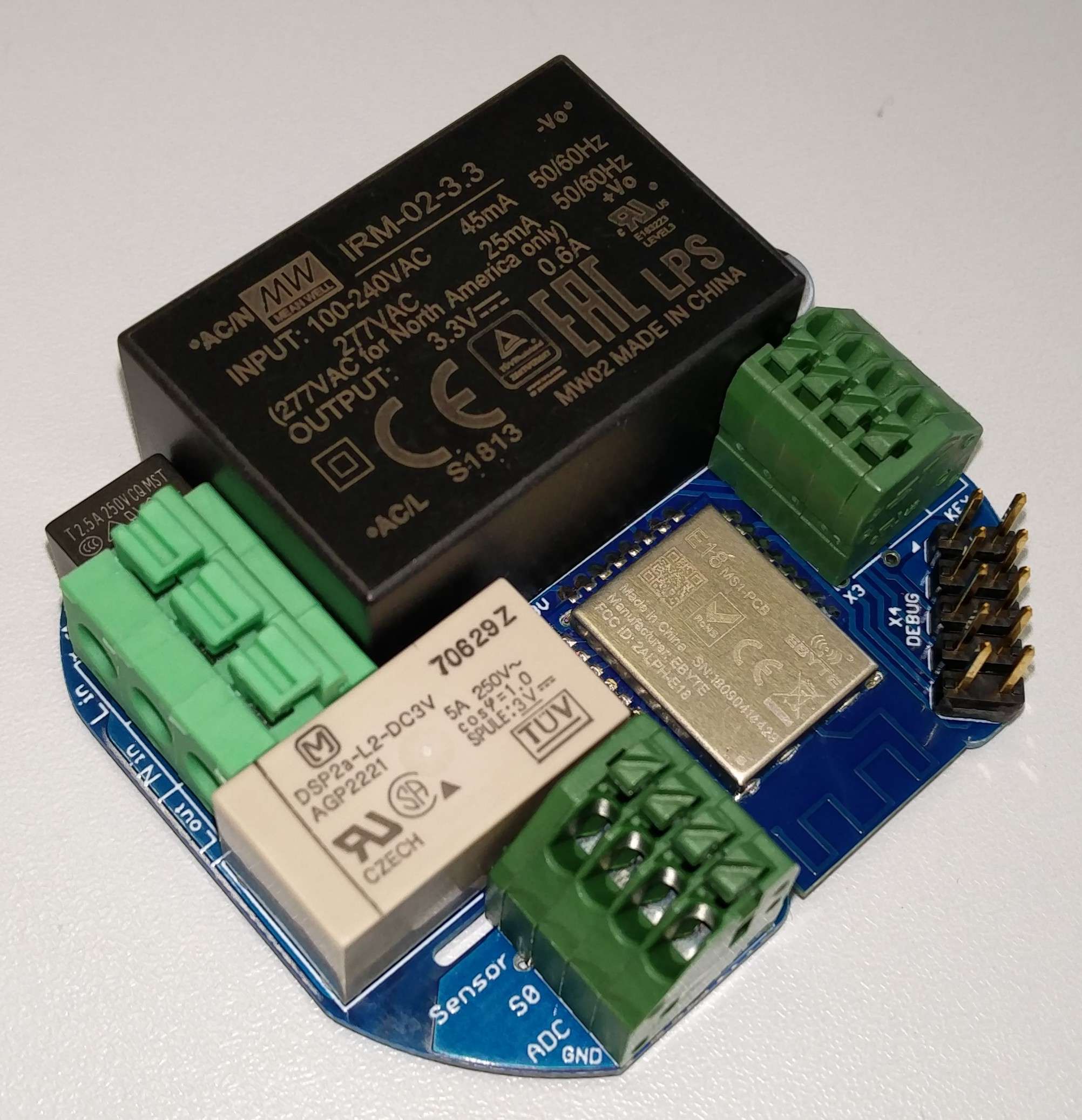

ZigUP

CC2530 based multi-purpose ZigBee Relais, Switch, Sensor and Router

Features

• Small enough to fit under a normal lightswitch in an european flush-mounted box ("Unterputzdose" - That´s the UP in ZigUP)
• integrated ZigBee Router (extends the range of all your other devices)
• Powerful bistable relais for up to 10 amps load

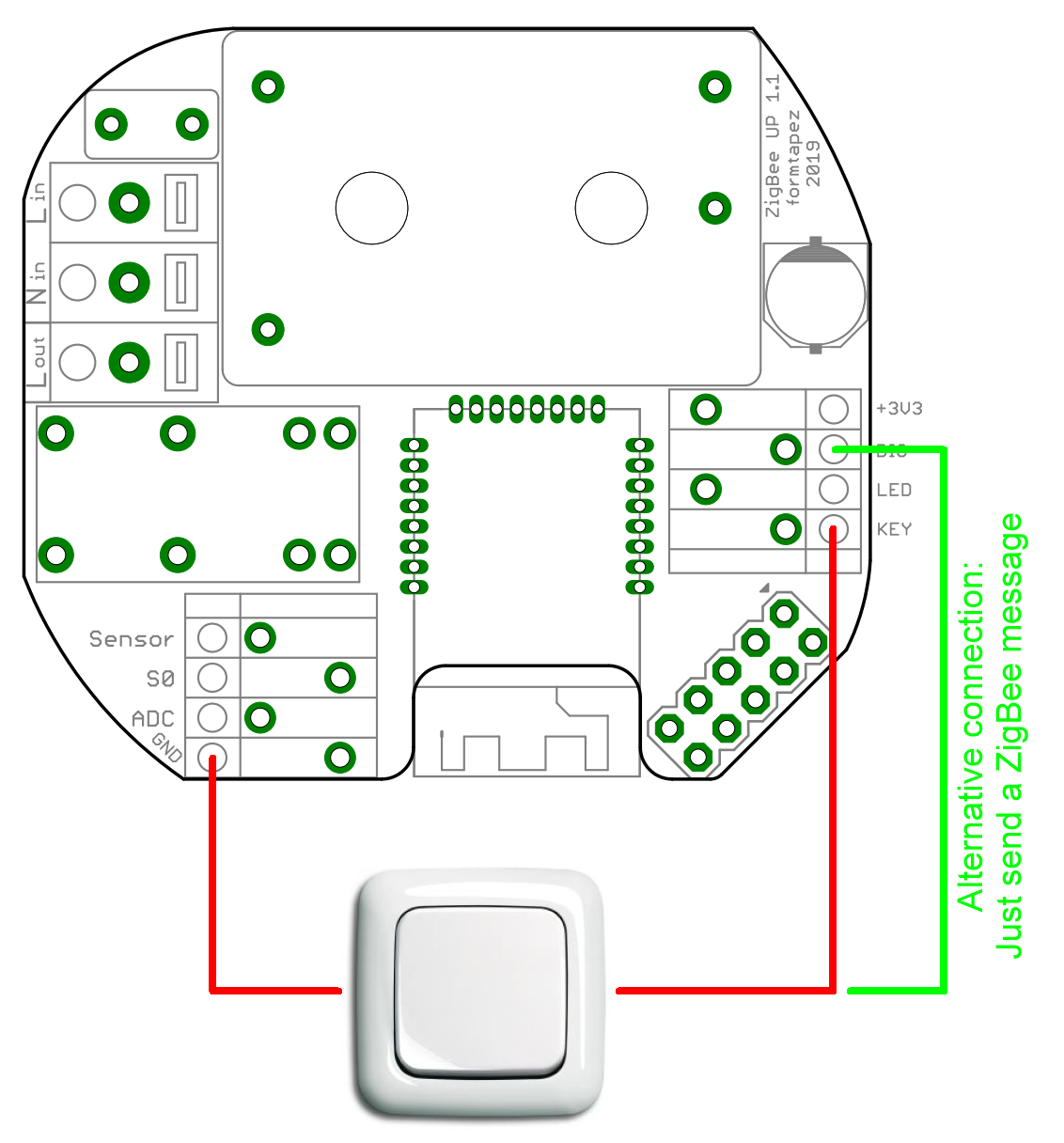

• 2 Inputs for switches/buttons:
  • Input "KEY" directly toggles the relais and outputs a ZigBee message
  • Input "DIG" only outputs a ZigBee message - So your coordinator can decide if the relais has to be toggled or not.

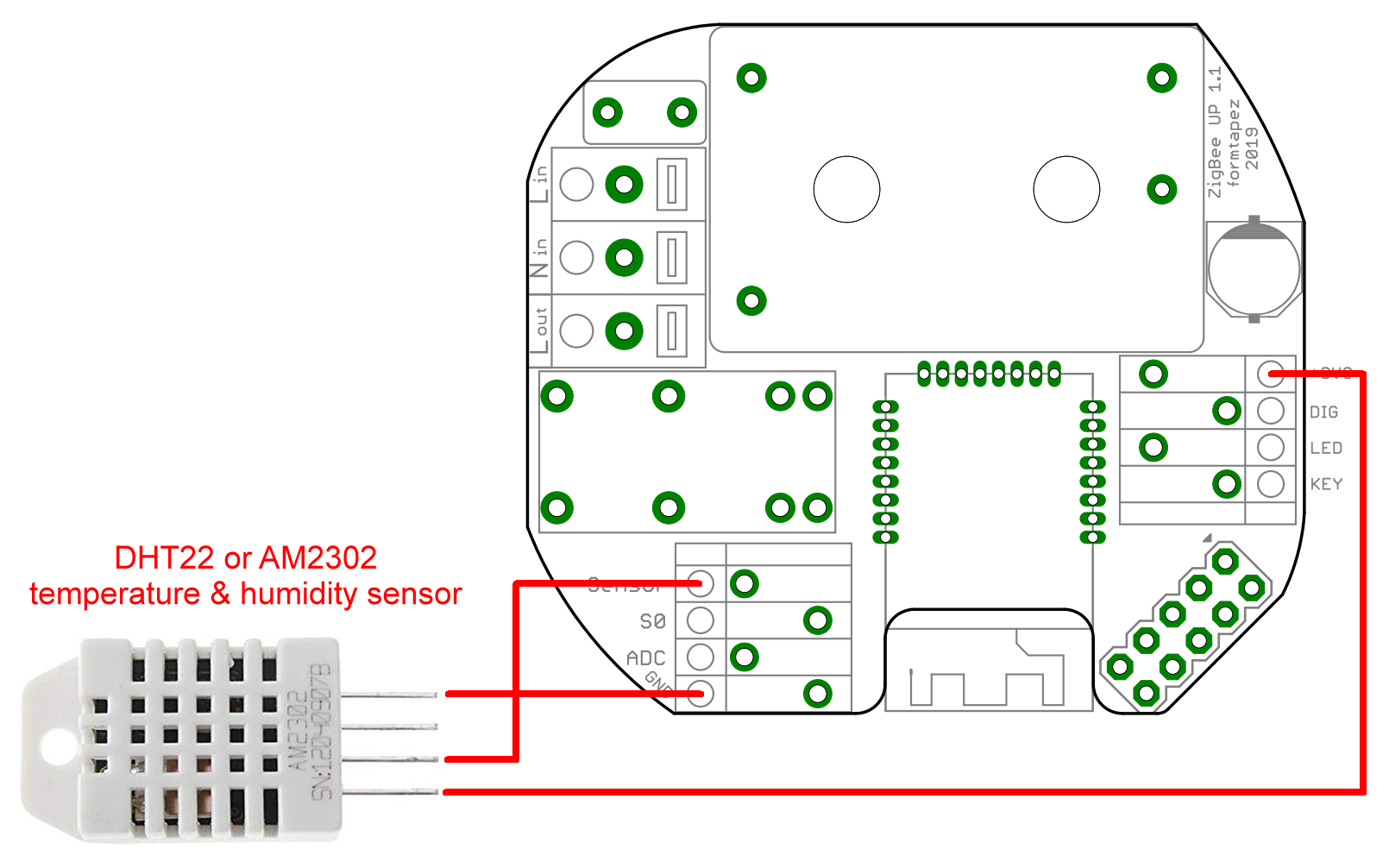

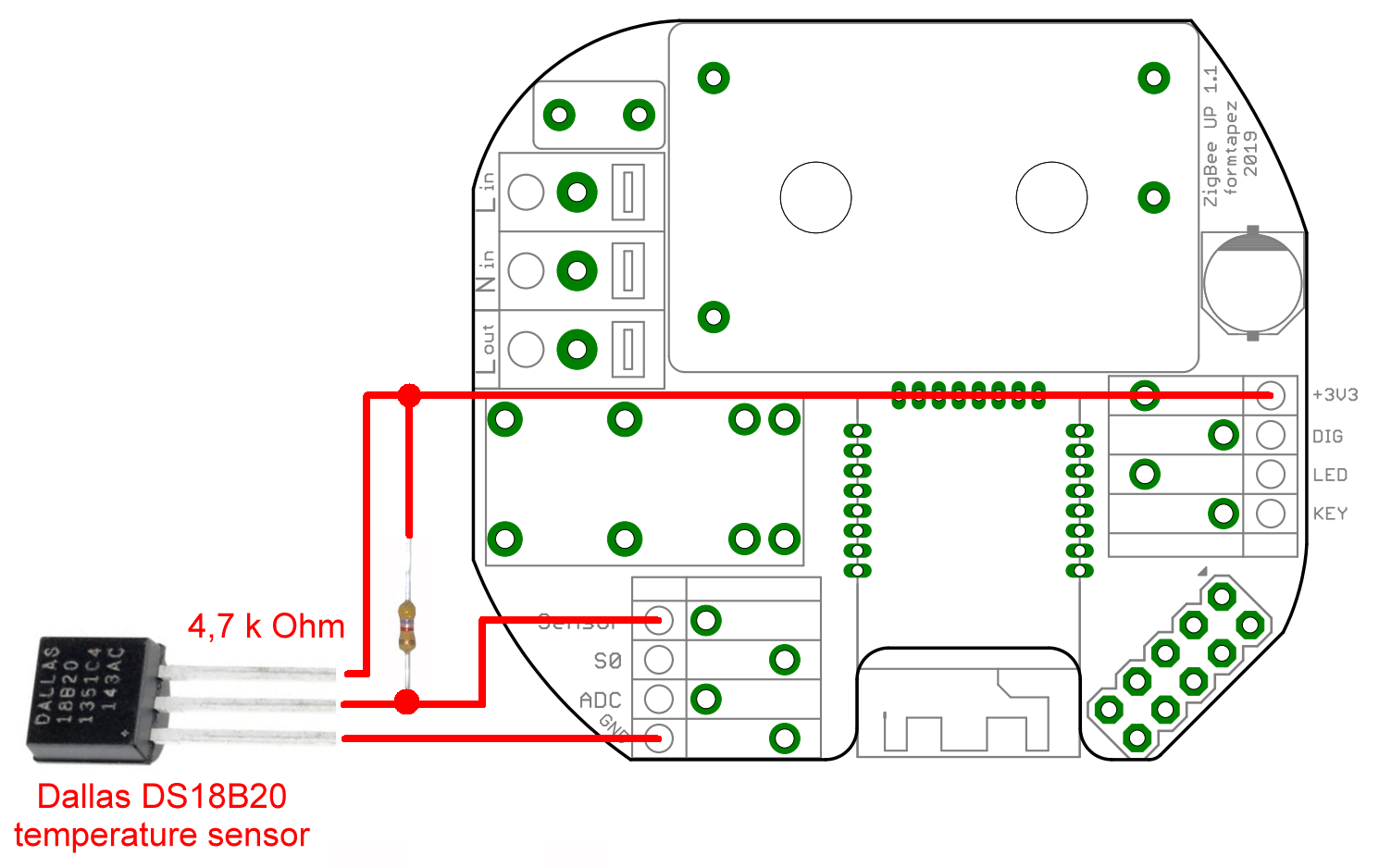

• Input for digital temperature and humidity sensors (DHT22/AM2302/DS18B20) (Measurements will be reported via ZigBee)

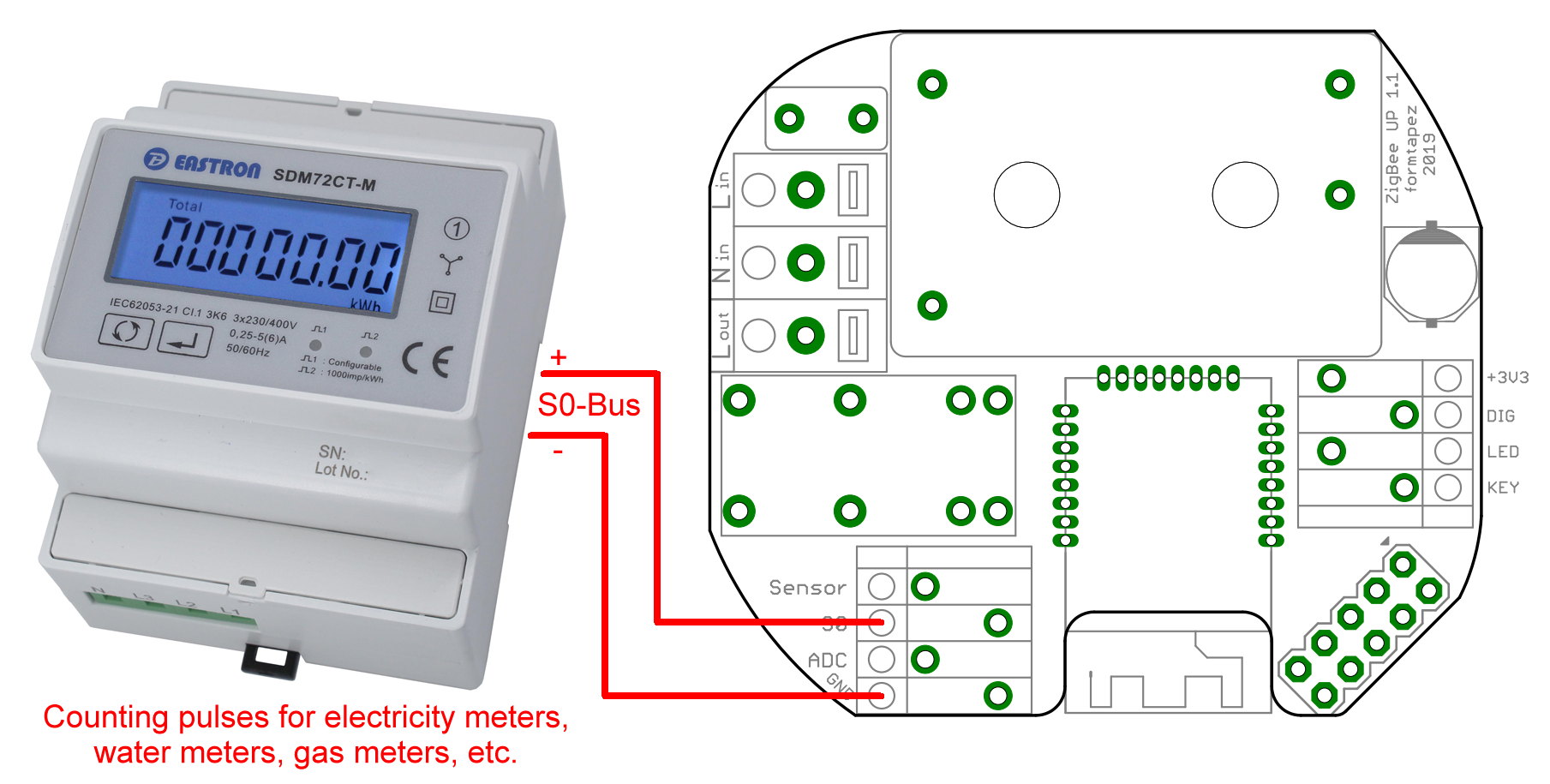

• Input for S0-Bus impulses from power-, water- or gas-meters. Count-Value will be reported via ZigBee)

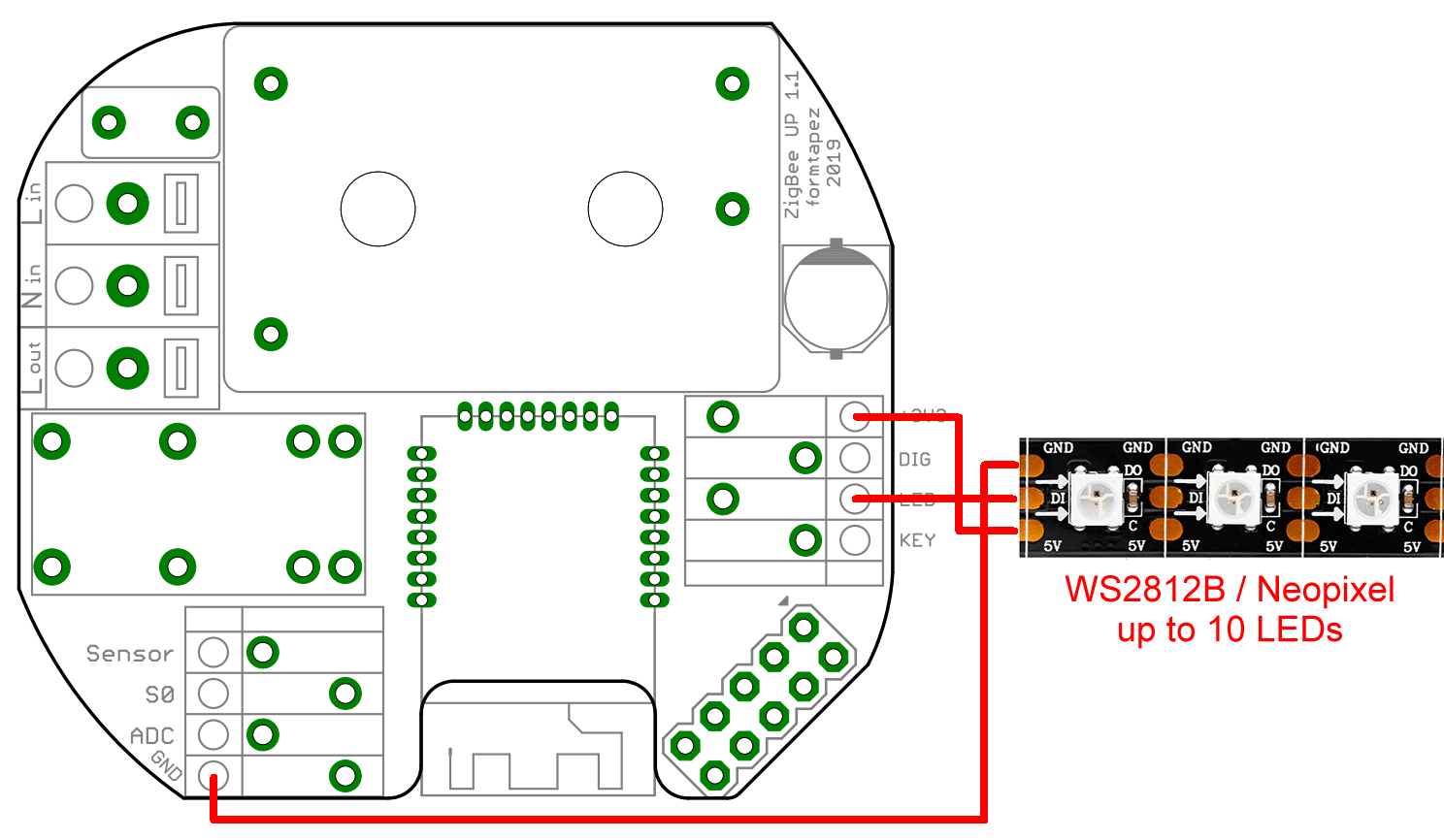

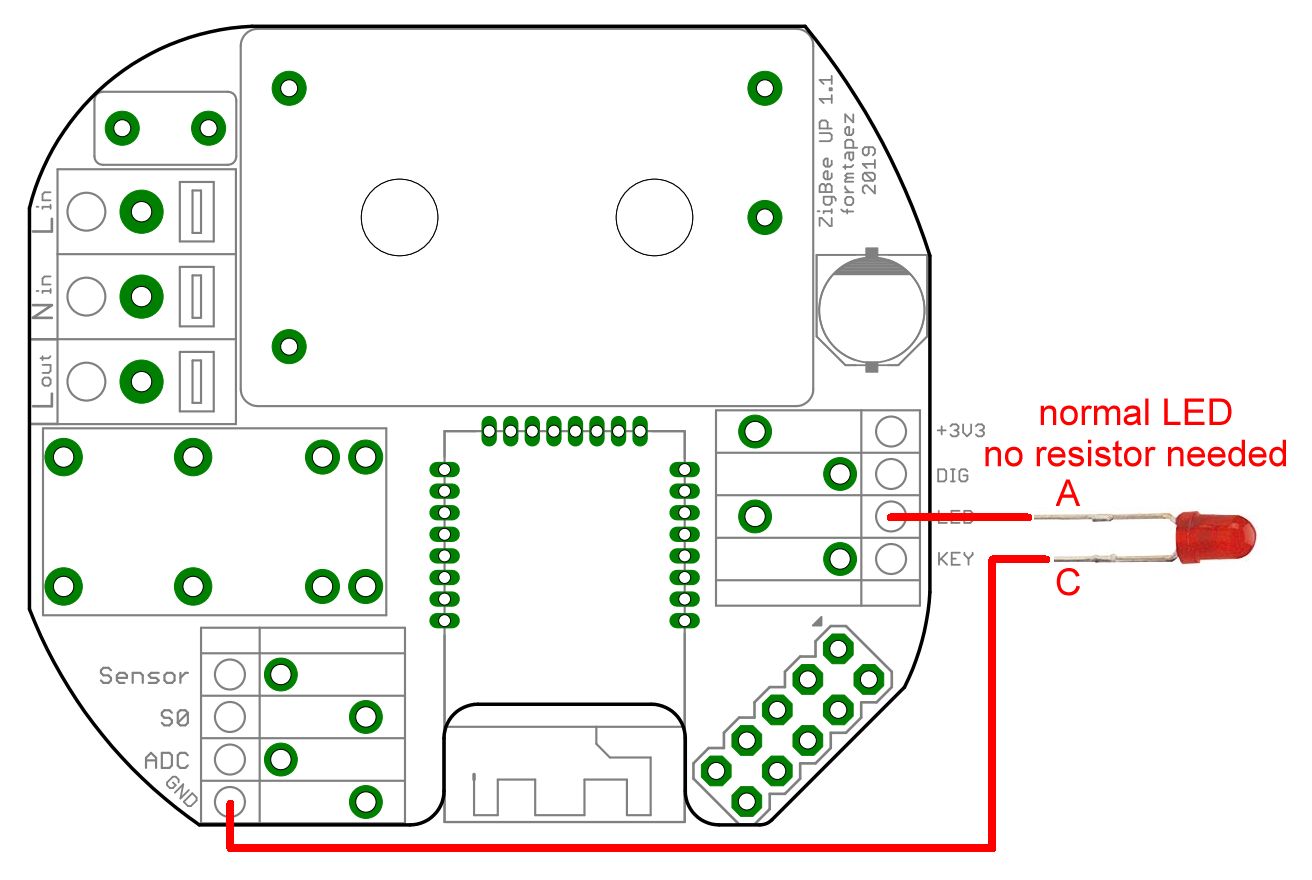

• Output for one normal LED or up to 10 WS2812B/Neopixel RGB-LEDs (controllable via ZigBee)
• Analog input to measure voltages of up to 32 Volt. (Voltage will be reported via ZigBee)
• Fully equipped debug-port to allow CC Debugger flashing and packet sniffing

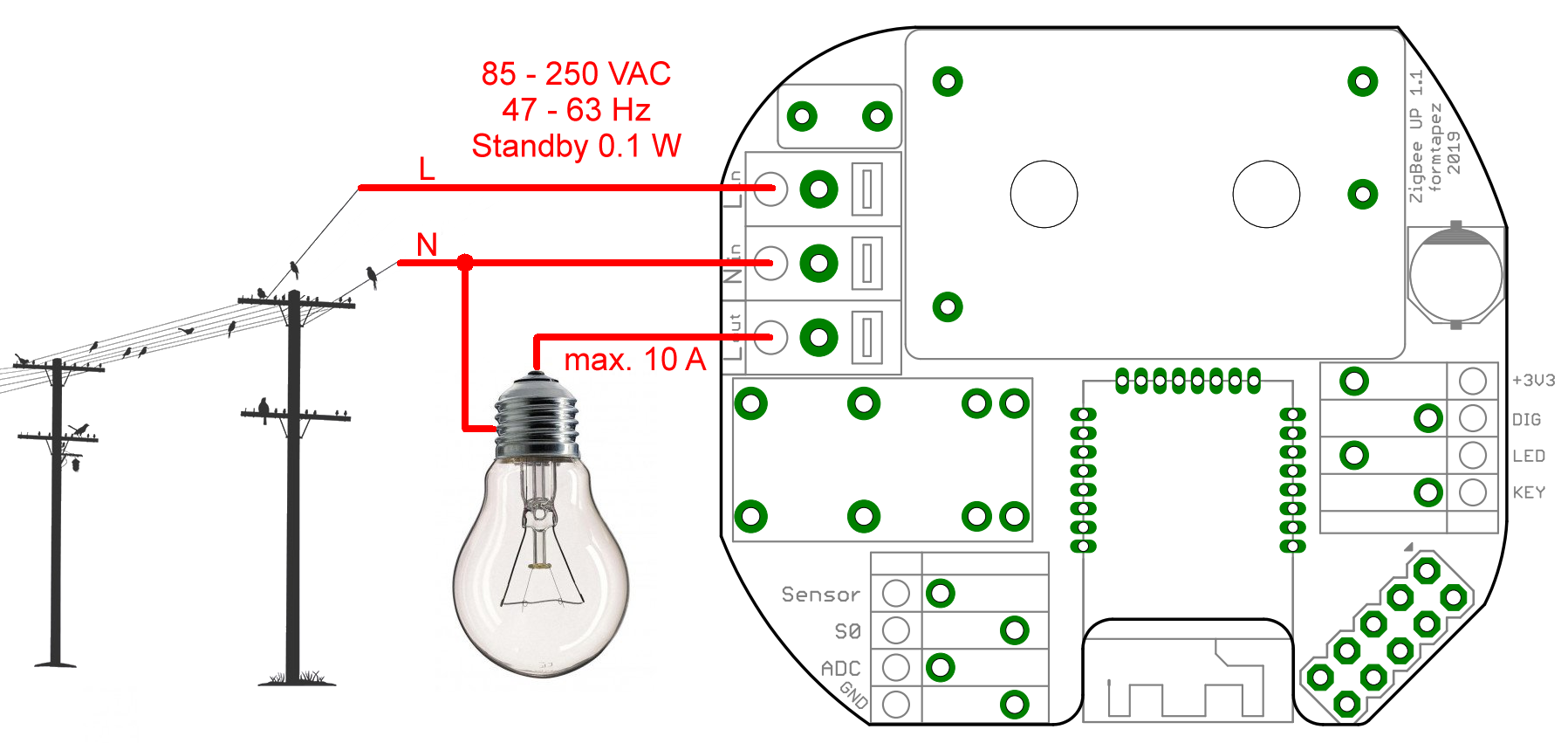

Connection diagrams

Compilation

1. Get Z-Stack Home 1.2.2a.44539 from http://www.ti.com/tool/Z-STACK-ARCHIVE
2. Get IAR Embedded Workbench for 8051 from https://www.iar.com/iar-embedded-workbench (you can use the free trial version for one month)
3. Clone ZigUP source to \Projects\zstack\HomeAutomation\ZigUP\
4. Start \ZigUP\CC2530DB\ZigUP.eww to load project in IAR
5. Set project configuration to "Router".
6. Edit \Projects\zstack\Tools\CC2530DB\f8wConfig.cfg to use all 2.4 GHz channels:

   -DDEFAULT_CHANLIST=0x07FFF800

7. Compile

Flashing with CC Debugger

1. Get SmartRF Flash Programmer v1.12.8 (not v2.x!) from https://www.ti.com/tool/flash-programmer
2. Connect CC Debugger to the Debug-Port of ZigUP with an 1:1 cable.
3. Select "Program CCxxxx..." and "System-on-Chip" tab
4. Load HEX-File and perform "Erase, program and verify" action

Packet Sniffing using CC Debugger

1. Get PACKET-SNIFFER v2.18.1 (not SNIFFER-2 v1.x!) from http://www.ti.com/tool/PACKET-SNIFFER
2. Connect CC Debugger to the Debug-Port of ZigUP with an 1:1 cable.
3. Select protocol "IEEE 802.15.4/ZigBee" and click "Start"
4. Change radio channel and click "Start"
5. Re-flash ZigUP firmware when you are done. Because it was replaced by a sniffer-firmware.
