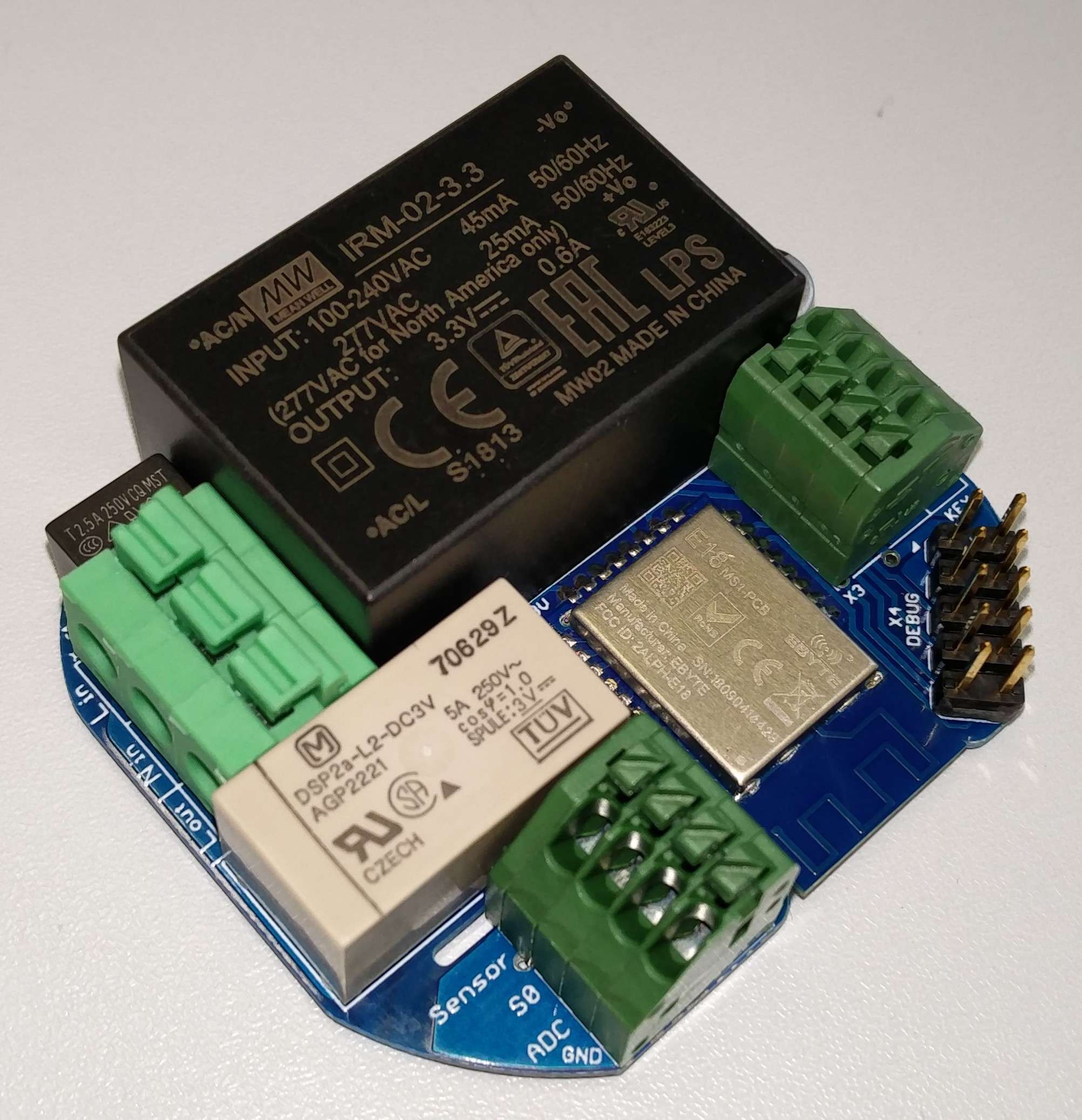

ZigUP

CC2530 based multi-purpose ZigBee Relais, Switch, Sensor and Router

Features

• Small enough to fit under a normal lightswitch in an european flush-mounted box ("Unterputzdose" - That´s the UP in ZigUP)
• integrated ZigBee Router (extends the range of all your other devices)
• Powerful bistable relais for up to 10 amps load

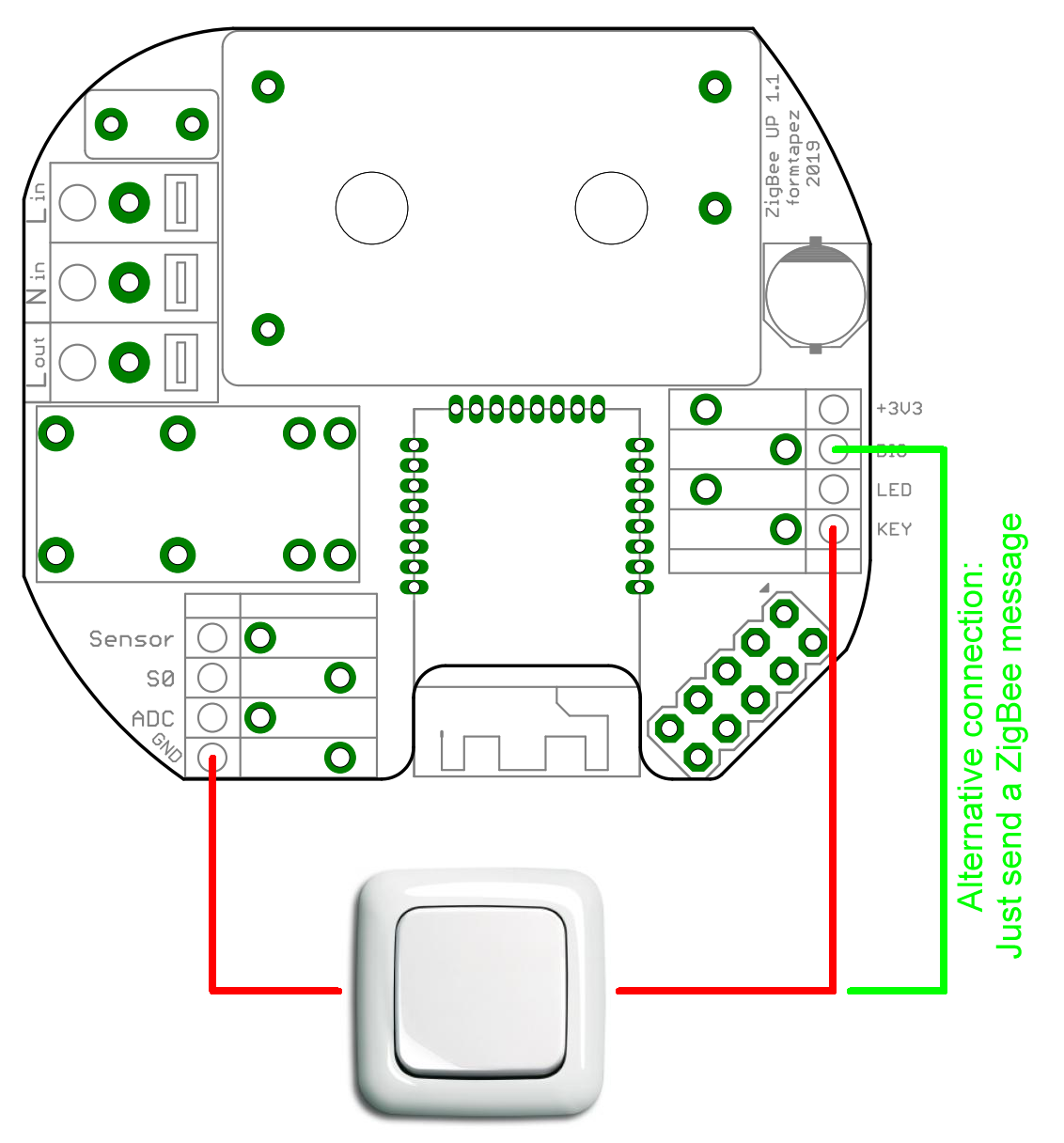

• 2 Inputs for switches/buttons:
  • Input "KEY" directly toggles the relais and outputs a ZigBee message
  • Input "DIG" only outputs a ZigBee message - So your coordinator can decide if the relais has to be toggled or not.

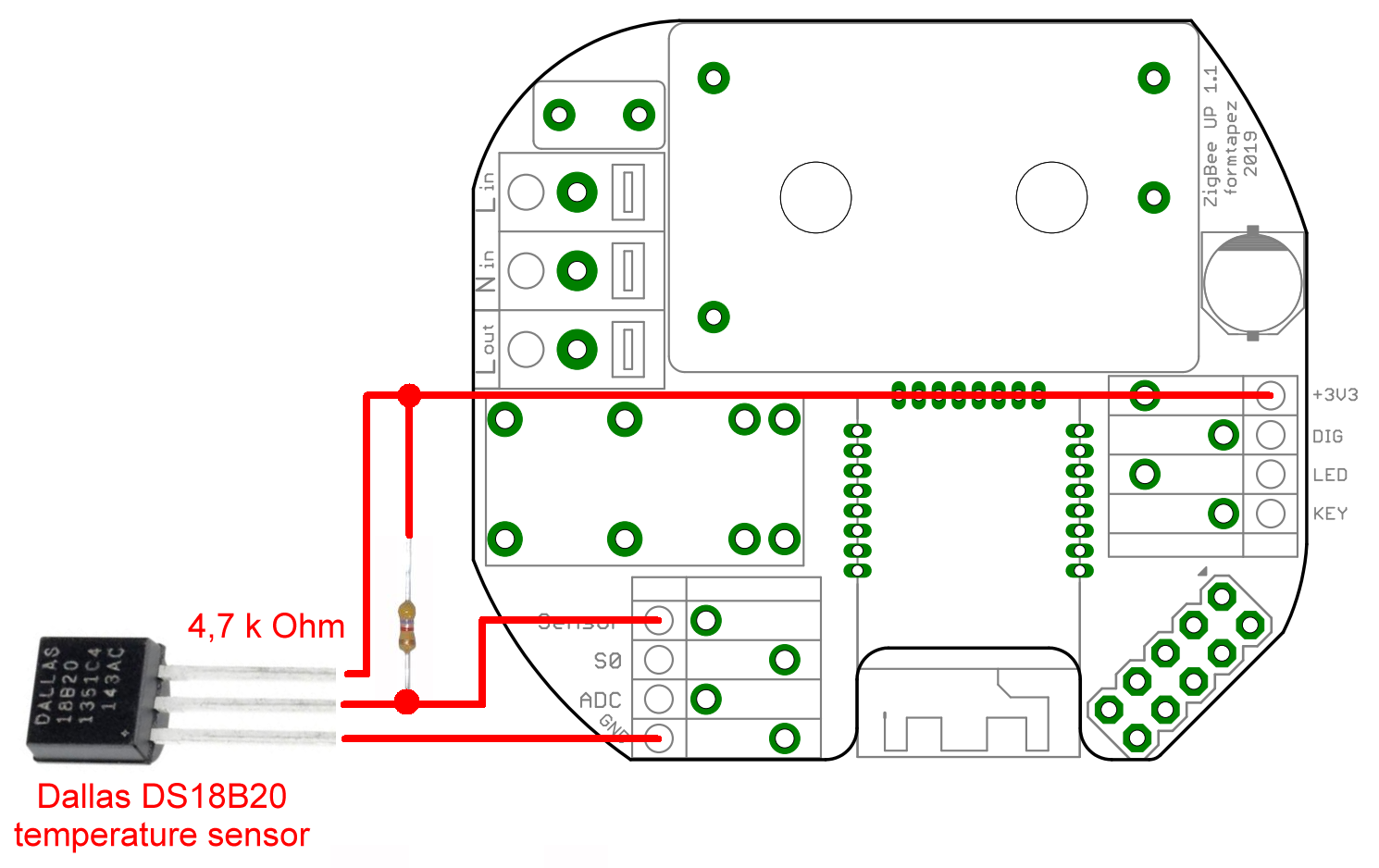

• Input for digital temperature and humidity sensors (DHT22/AM2302/DS18B20) (Measurements will be reported via ZigBee)

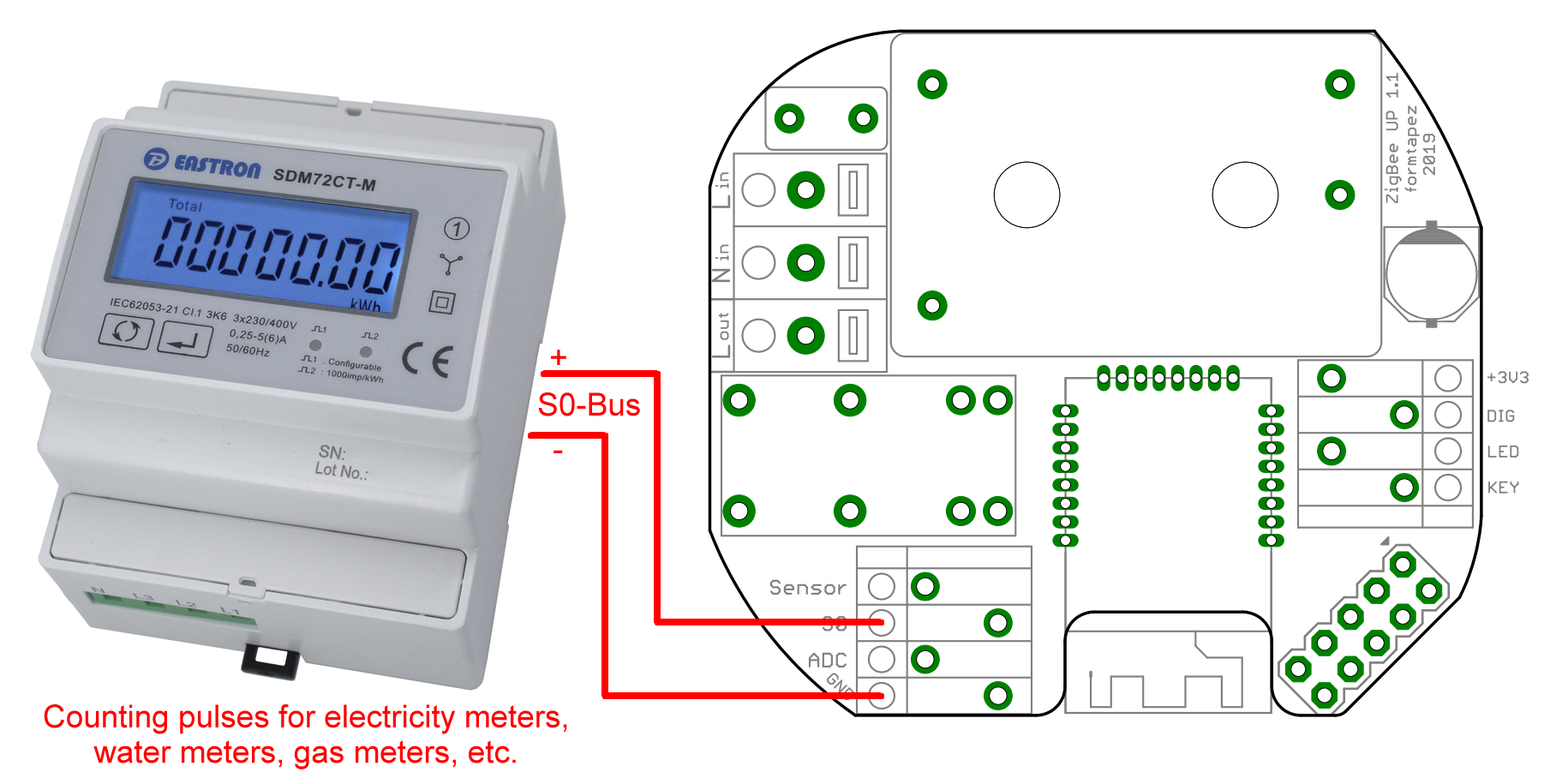

• Input for S0-Bus impulses from power-, water- or gas-meters. Count-Value will be reported via ZigBee)

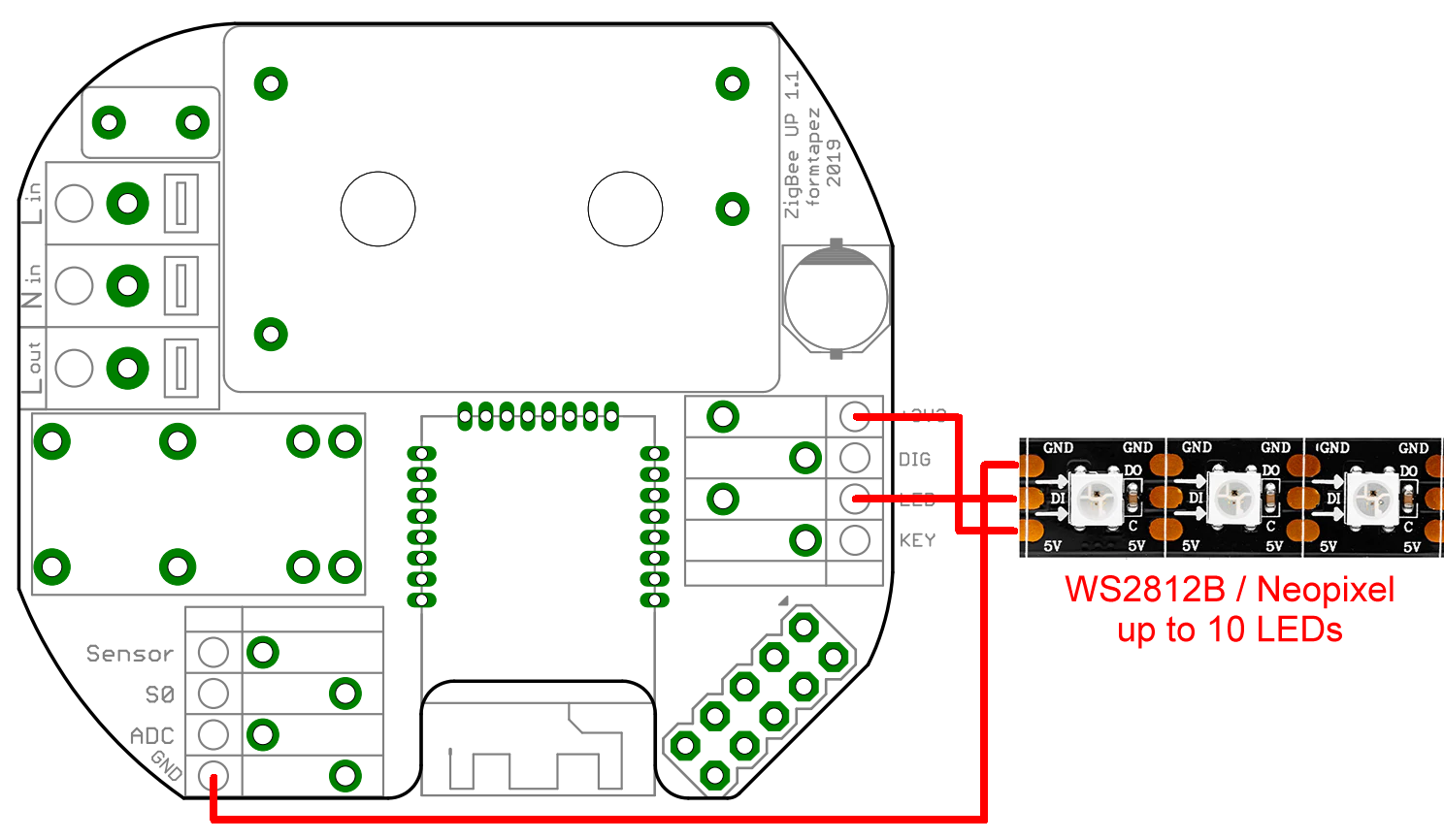

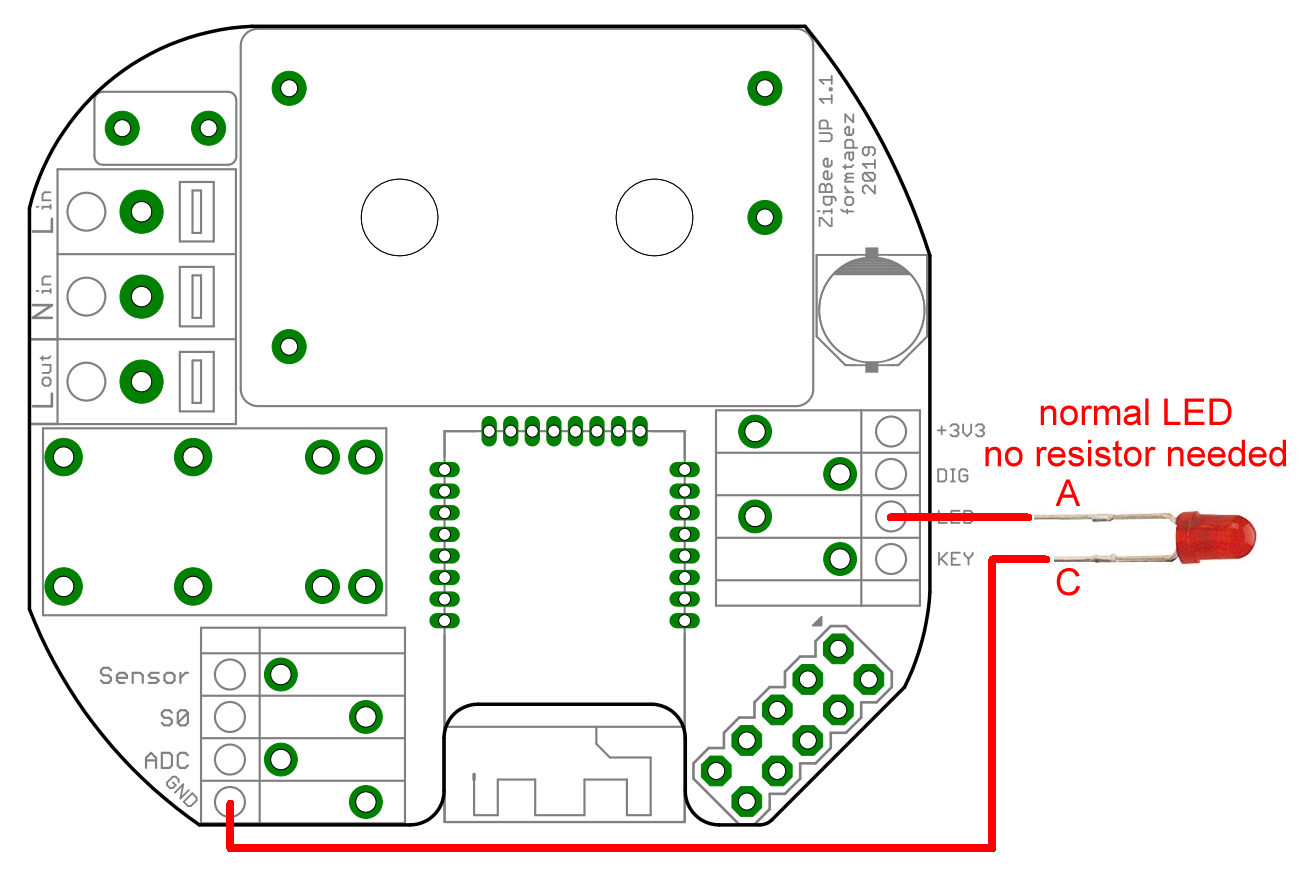

• Output for one normal LED or up to 10 WS2812B/Neopixel RGB-LEDs (controllable via ZigBee)

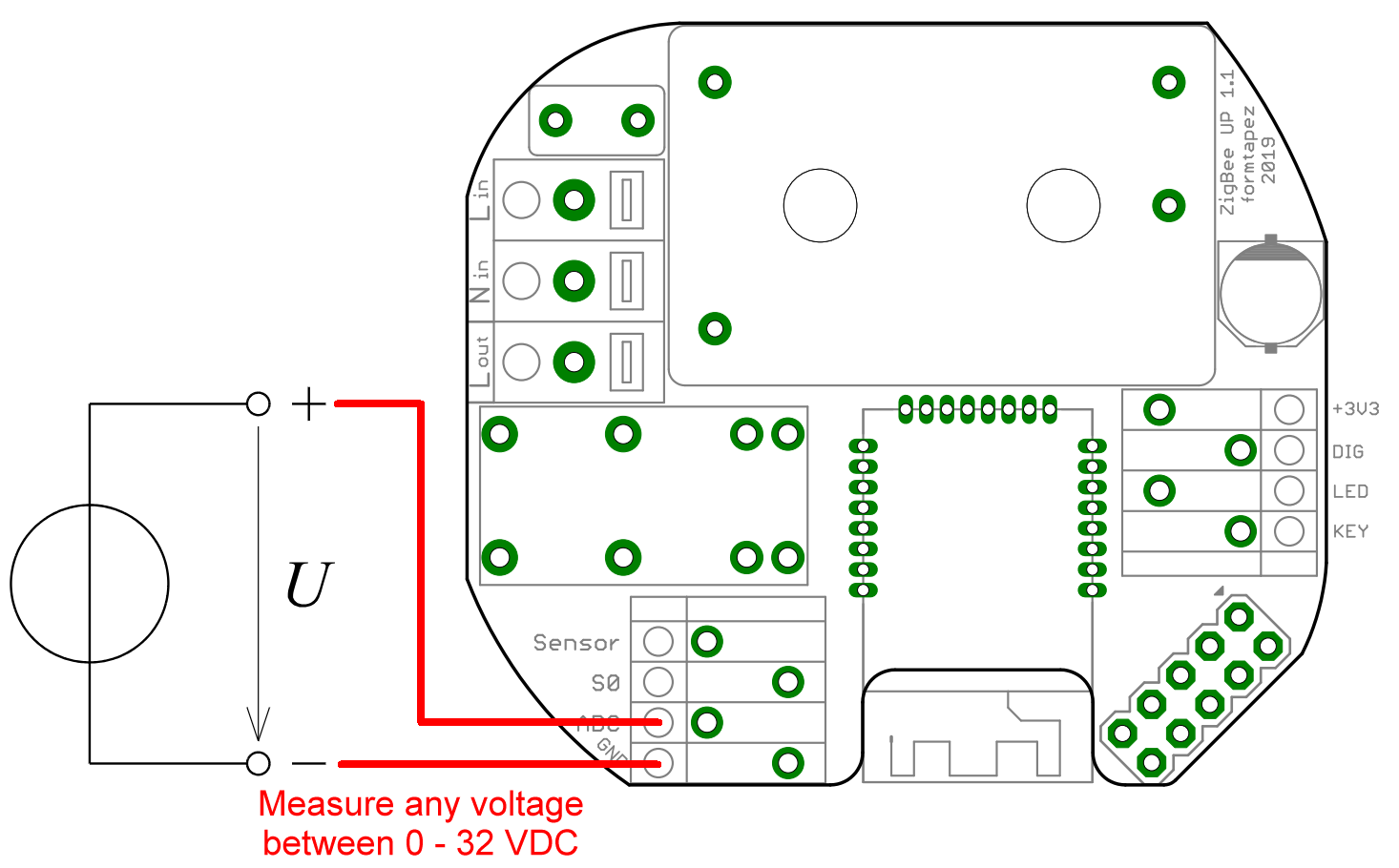

• Analog input to measure voltages of up to 32 Volt. (Voltage will be reported via ZigBee)

Hi! I'm your first Markdown file in StackEdit. If you want to learn about StackEdit, you can read me. If you want to play with Markdown, you can edit me. Once you have finished with me, you can create new files by opening the file explorer on the left corner of the navigation bar.

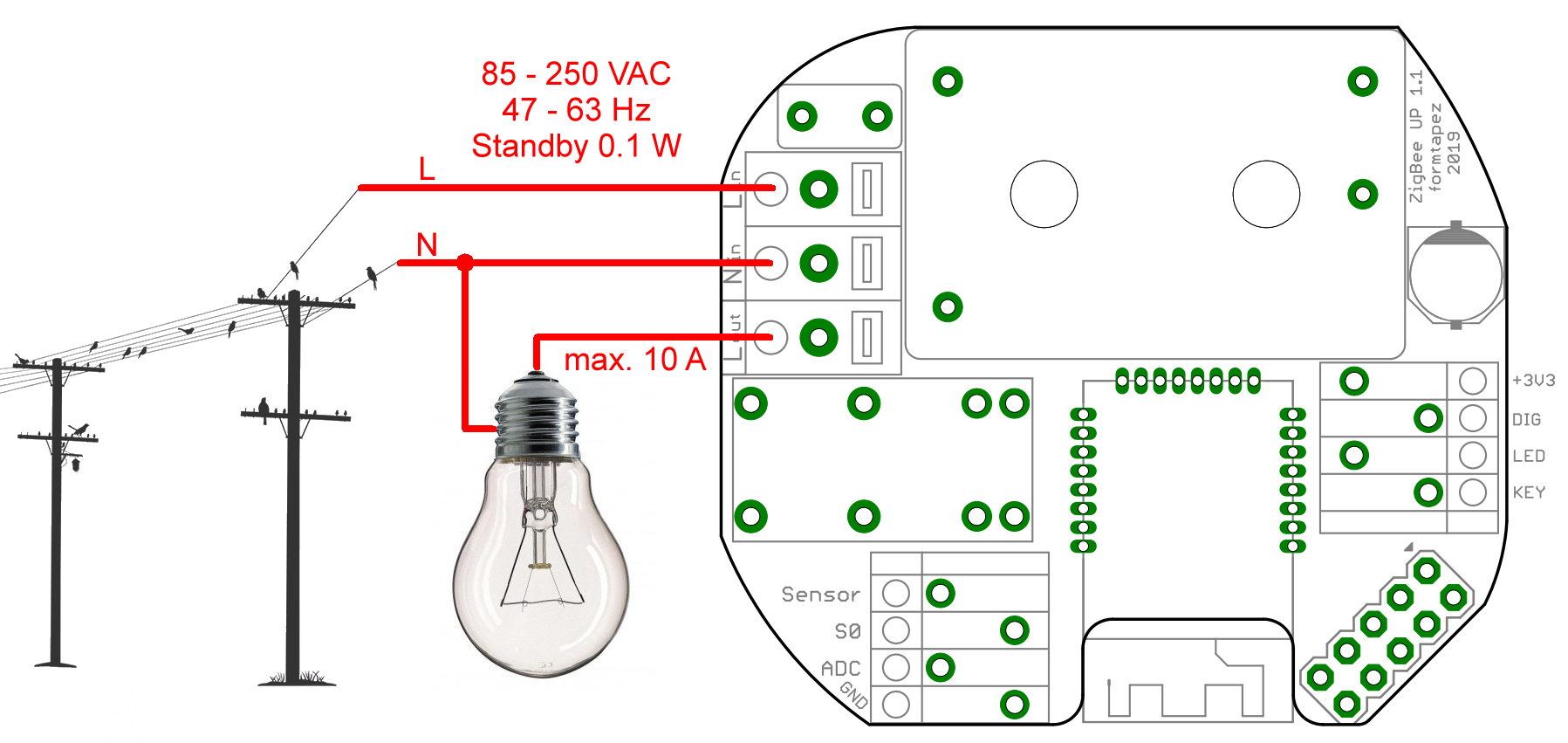

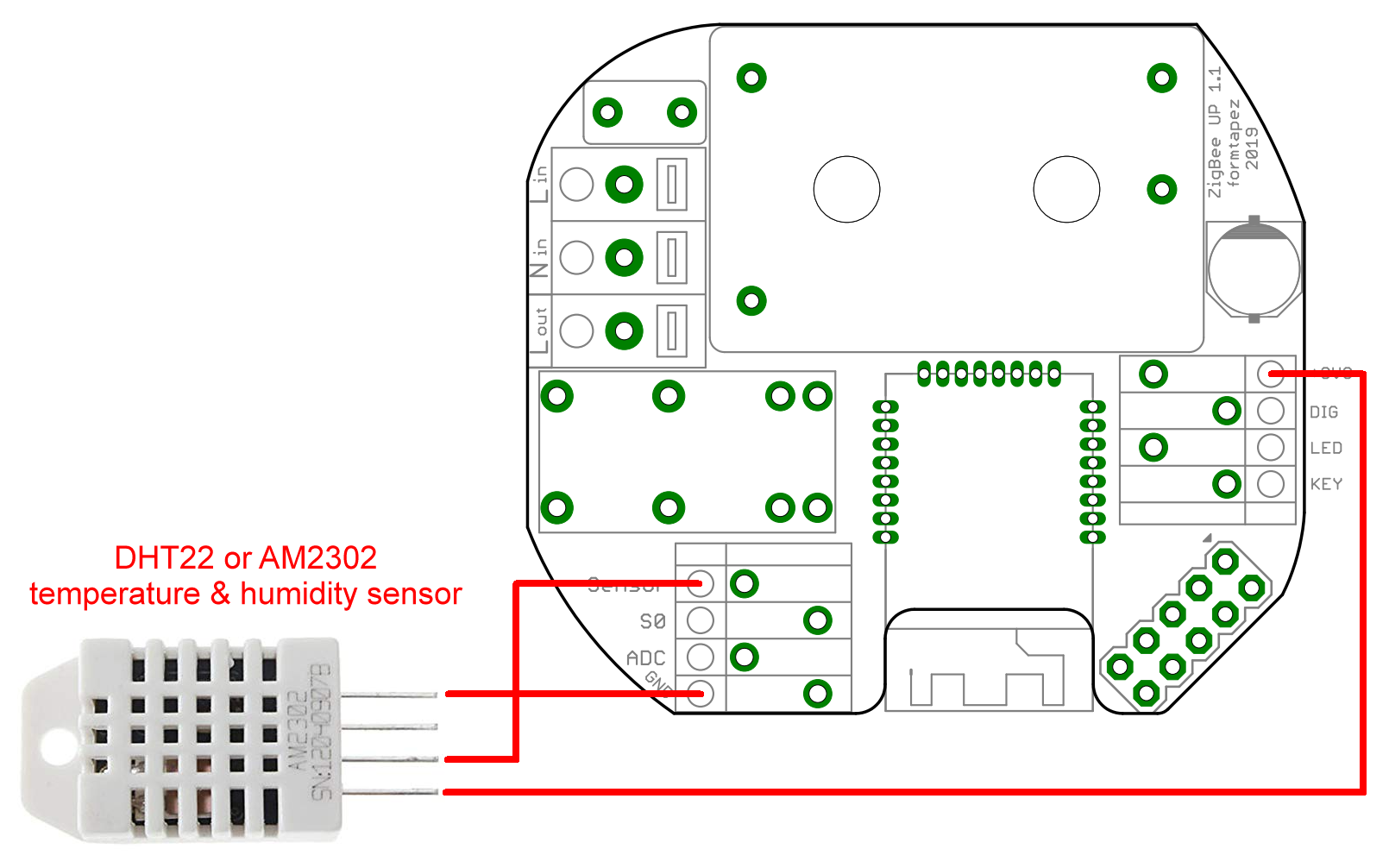

Connection diagrams

Compilation

1. Get Z-Stack Home 1.2.2a.44539 from http://www.ti.com/tool/Z-STACK-ARCHIVE
2. Get IAR Embedded Workbench for 8051 from https://www.iar.com/iar-embedded-workbench (you can use the free trial version for one month)
3. Clone ZigUP source to \Z-Stack Home 1.2.2a.44539\Projects\zstack\HomeAutomation\ZigUP\
4. Start \ZigUP\CC2530DB\ZigUP.ewp to load project in IAR
5. Set project configuration to "Router".
6. Compile

Flashing with CC Debugger

1. Get SmartRF Flash Programmer v1.12.8 (not v2.x!) from https://www.ti.com/tool/flash-programmer
2. Load HEX-File and click "flash"
